In early 2012, Benro released two models of universal quick release L plates, MPU100 and MPU105.
 |

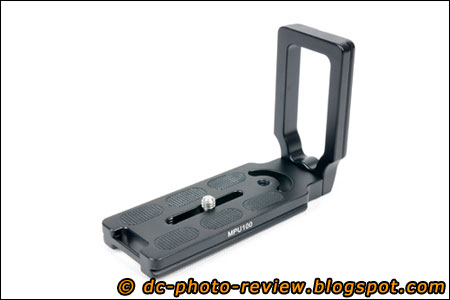

| MPU100 |
 |
| MPU105 |
The L plates are light and handy, and are designed for cameras WITHOUT vertical grip. Using the plates, you can switch your camera orientation easily without rotating your ball head. Both of them are Arca-Swiss compatible, fitting wide range of gears.
Specification
The sizes of the two models are the same, just in different designs.
- Material: Aluminium Alloy
- Color: Matt Black
- Width: 110mm
- Height: 80mm
- Depth: 40mm
- Thickness: 10mm
- Self Weight: 105g
- Mounting Screw Diameter: 1/4" (the screw size that connecting the L plate and the camera)
- Compatibility: Dovetail in Arca-Swiss Standard
- With built-in lug for attaching camera straps
Features & Product Shots - MPU100
The position of the mounting screw is freely adjustable throughout the horizontal slot, this design can eliminate any clearance from the camera edge.
 |

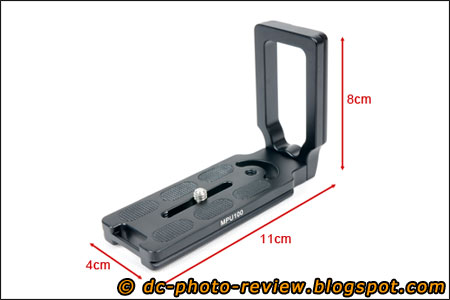

| Dimension of MPU100 |
 |
| Side view, dovetail in Arca-Swiss Standard. |
 |

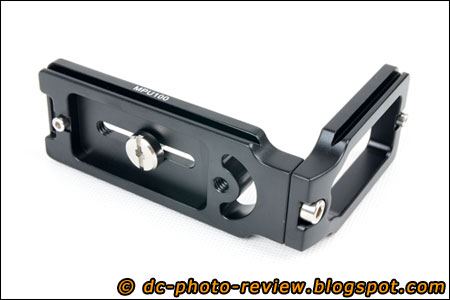

Mounting Screw is adjustable throughout the horizontal slot.
Besides, the built-in lug allows attaching camera strap. |
 |

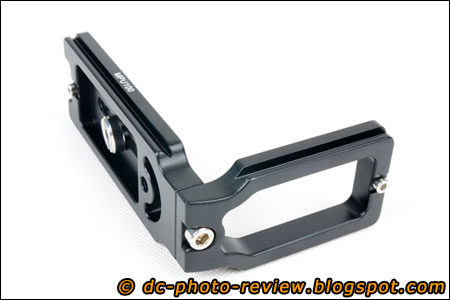

| Back view, dovetail in Arca-Swiss Standard. |
 |
| Back view, dovetail in Arca-Swiss Standard. |
 |
| Demo - Mounted horizontally on Benro ball head. |
 |

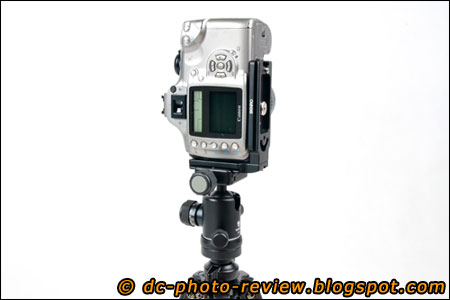

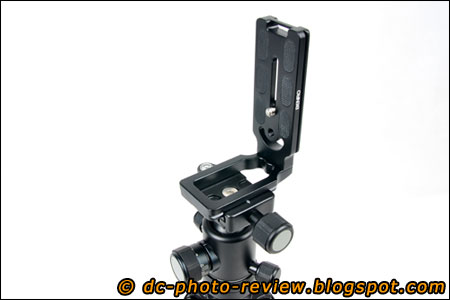

| Demo - Mounted vertically on Benro ball head. |
 |
| Demo - Mounted horizontally on Benro ball head. |
 |
| Demo - Mounted vertically on Benro ball head. |
Features & Product Shots - MPU105
The position of the mounting screw is adjustable by selecting one mounting slot out from the five, this design can prevent sliding of the mounted camera body.
 |

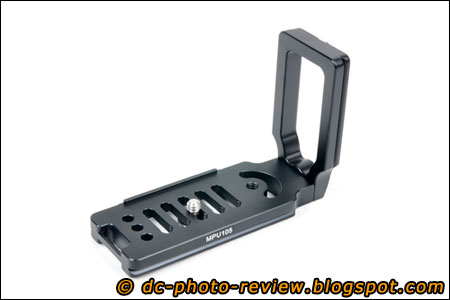

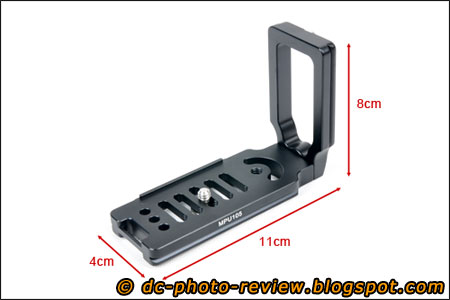

| Dimension of MPU105 |
 |
| Side view, dovetail in Arca-Swiss Standard. |
 |

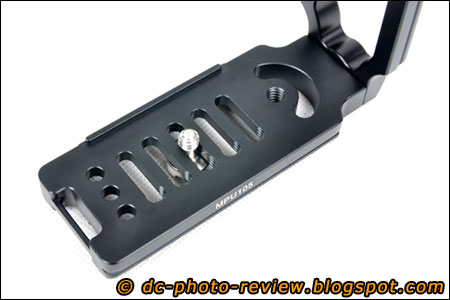

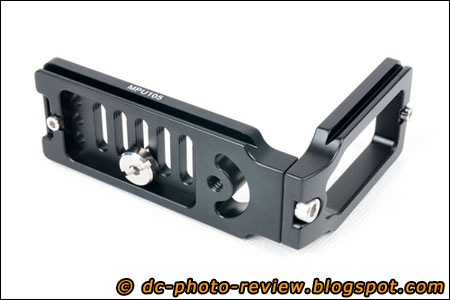

Mounting Screw is adjustable by selecting one mounting slot out from the five.
Besides, the built-in lug allows attaching camera strap. |
 |
| Back view, dovetail in Arca-Swiss Standard. |
 |
| Back view, dovetail in Arca-Swiss Standard. |
 |

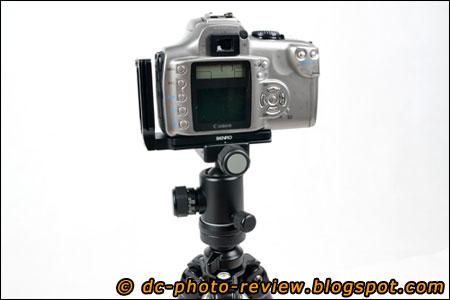

| Demo - Mounted horizontally on Benro ball head. |
 |

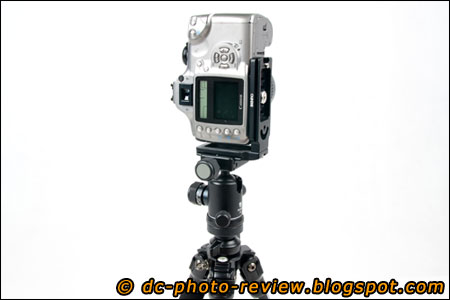

| Demo - Mounted vertically on Benro ball head. |
 |
| Demo - Mounted horizontally on Benro ball head. |
 |
| Demo - Mounted vertically on Benro ball head. |
Conclusion
Both MPU100 and MPU105 are light and handy Arca-Swiss compatible plates for camera bodies without vertical grip. With them, you can change your camera mounting orientations with ease.
Surely, for perfectionist, the L plates may not be as perfect as the plates tailored for specific cameras. But in price-wise (about USD 80, includes shipping), they are good choices. Especially if for multi-cameras owners.
Thank you for reading. I hope you find the article useful. :-)
